Titon™

Dependable Power When Every Second Counts





Runtime Calculator

Brand
Model
?

Depending on you addition accessories, which you can power via D-Tap or USB, the power consuption increases.
Below some accessories examples:

SmallHD 502 - 6 Wh
Teradek Bolt Pro - 4.5 Wh

Input Accessory Power Consumption (Wh)
Total Power Consumption
Wh

Advanced communication.

Accurate information you can depend on.

Use the onboard backlit LCD screen or your camera viewfinder to see instantly - down to the minute - exactly how much runtime remains. Anton/Bauer’s smart technology calculates everything being powered - even devices powered by the High-Speed USB and P-TAP - leaving you free to focus on the action in front of your camera.


Air transport safe.

Reliable power you can take anywhere.

Cleared for take-off. Titon batteries are safety certified to comply with UN38.3 IATA lithium-ion battery regulations. Independent safety lab testing confirms that Titon meets the stringent UN regulations and is built to the highest standard. Lighter and slimmer than standard 14V batteries but build to withstand life on the road, Titon is ready to go wherever the story takes you.


Endurance tested for action news.

Power and Performance when it counts.

Designed to perform on the toughest assignments, Titon batteries are the compact, reliable, travel-safe choice when you need to capture the shot first time – every time! High quality cells in a rugged case ensure consistent power to the most demanding users in temperatures from -20C to 60C (-4F to 140F). Wherever you need it, with Titon you have the power.



What our Customers think

Jim Kenney

Jim Kenney
Read the full Story

Jim goes back a long way with Anton/Bauer – in fact, to the early days of his pro career. “I’ve used Anton/Bauer batteries for about 30 years, from my days shooting sports for local news and later as a national news photographer and producer for NBC.

"My Anton/Bauers have never let me down."

John Fry

John Fry
Read the full story

John has worked with big rigs for almost 15 years, during which time he has operated Steadicam on everything from high budget feature films, broadcast TV, documentaries, & independent movies, to news, corporate films, commercials and music videos.

"Knowing precisely what's left in the battery is absolutely critical!"

Steve Hubbard

Steve Hubbard
Read the full story

Experienced cameraman Steve Hubbard swears by his Anton/Bauer Titon batteries to deliver the performance he needs to get through a long and rugged day of shooting for the BBC – together with the peace of mind he needs for live shots.

"The Titons are a tremendous asset to my kit – they take away the worry that I’ll have enough power to get me through my day."

Chuck Samataro

Chuck Samataro
Read the full story

Director of Photography Chuck Samataro has relied on Anton/Bauer batteries throughout his 30-year career in sports broadcasting. Today, his Titon batteries are an essential part of his kit taking the guesswork out of camera and lighting runtimes, leaving him to focus on telling compelling stories.

"I know the batteries will get me through the shoot with plenty of power to spare."


Product Overview

Titon is available in three versions, a 92Wh, 156Wh and a 238Wh Battery. All are available in V-Mount or Gold Mount. Built to withstand the rigors of broadcast use, Anton/Bauer’s premium Titon batteries are the rugged and reliable choice for camera crews live on the scene.

Download One-Sheet

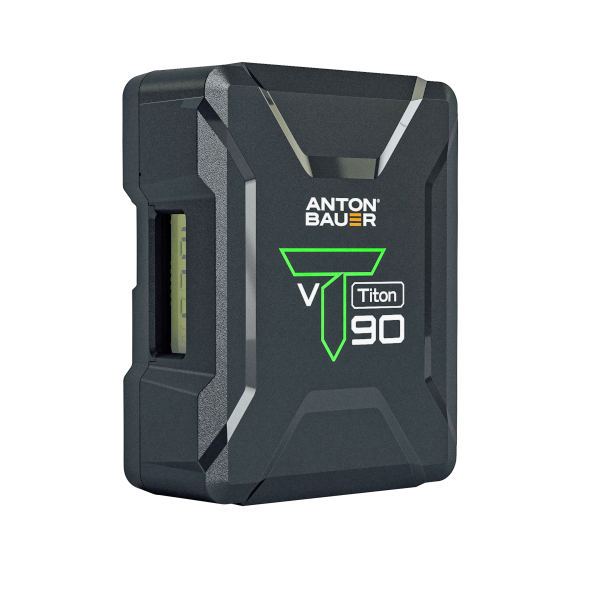

Titon V90
  • Mount: V-Mount
  • Capacity: 92Wh
  • Amperage: 10A
  • Estimated Life: 1000 cycles
  • Connections: 1 x P-Tap / 1 x USB
  • Weight: 1.76lbs / 0.8kg
  • Dims: 2.1 x 5.1 x 3.8in / 53 x 132 x 99mm
PRODUCT DETAILS

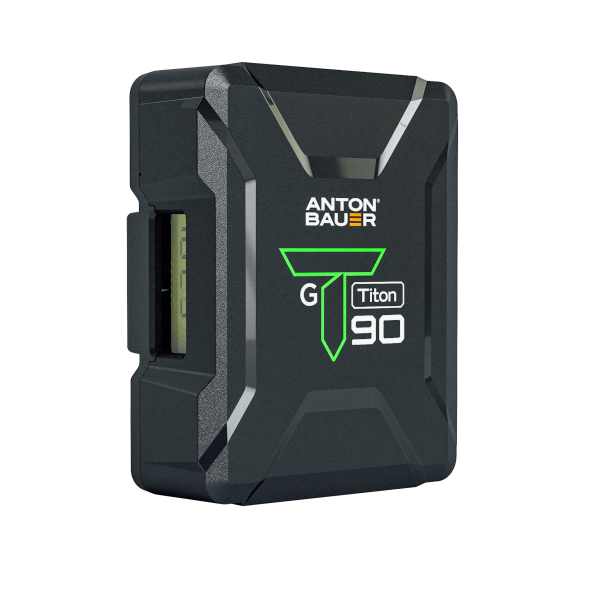

Titon G90
  • Mount: Gold Mount
  • Capacity: 92Wh
  • Amperage: 10A
  • Estimated Life: 1000 cycles
  • Connections: 1 x P-Tap / 1 x USB
  • Weight: 1.76lbs / 0.8kg
  • Dims: 2.3 x 5.1 x 3.8in / 58 x 132 x 99mm
PRODUCT DETAILS

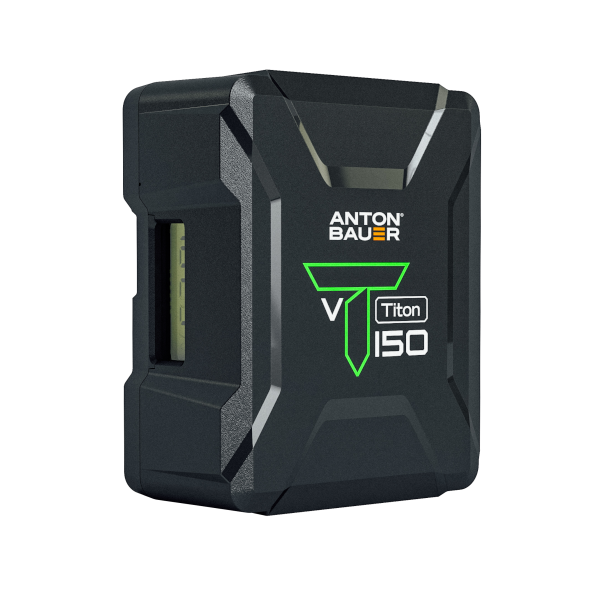

Titon V150
  • Mount: V-Mount
  • Capacity: 156Wh
  • Amperage: 10A
  • Estimated Life: 1000 cycles
  • Connections: 1 x P-Tap / 1 x USB
  • Weight: 2.4lbs / 1.1kg
  • Dims: 2.6 x 5.1 x 3.8in / 66 x 132 x 99mm
PRODUCT DETAILS
Titon G150
  • Mount: Gold Mount
  • Capacity: 156Wh
  • Amperage: 10A
  • Estimated Life: 1000 cycles
  • Connections: 1 x P-Tap / 1 x USB
  • Weight: 2.4lbs / 1.1kg
  • Dims: 2.8 x 5.1 x 3.8in / 71 x 132 x 99mm
PRODUCT DETAILS
Titon G240
  • Mount:  Gold Mount
  • Capacity: 238Wh
  • Amperage: 10A
  • Estimated Life: 1000 cycles
  • Connections: 1 x P-Tap / 1 x USB
  • Weight: 2.4lbs / 1.1kg
  • Dims: 3.9 x 5.2 x 3.4in / 87 x 131 x 99mm
PRODUCT DETAILS

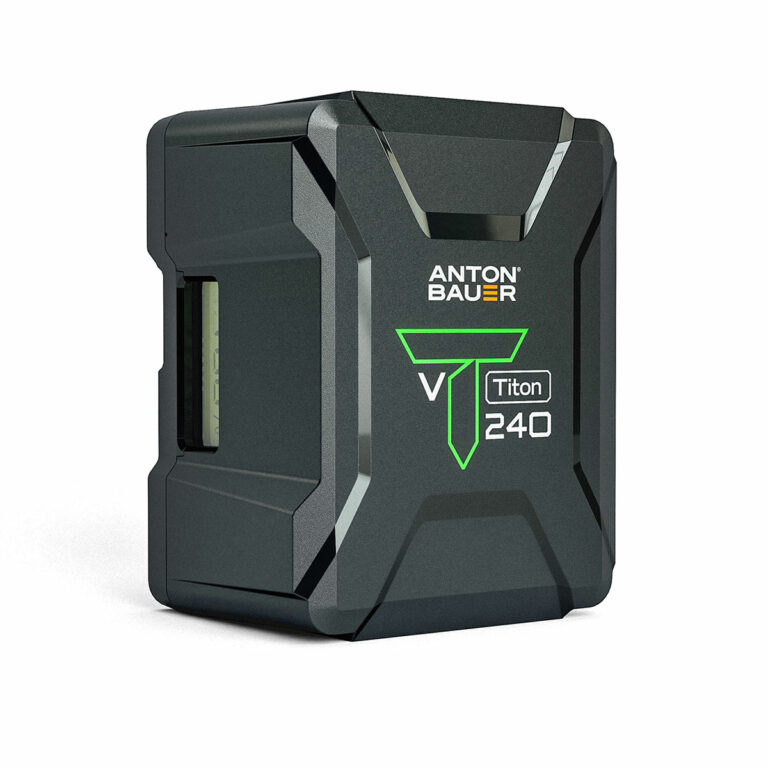

Titon V240
  • Mount: V-Mount
  • Capacity: 238Wh
  • Amperage: 10A
  • Estimated Life: 1000 cycles
  • Connections: 1 x P-Tap / 1 x USB
  • Weight: 2.4lbs / 1.1kg
  • Dims: 3.9 x 5.2 x 3.4in / 87 x 131 x 99mm
PRODUCT DETAILS


Frequently asked questions




Lithium-ion batteries are the standard found in most portable electronics these days. They are significantly lighter than most other technologies, this weight saving without any loss of power is a perfect for camera operators with ever-more power-hungry cameras. Li-ion batteries are not affected by the memory charging effect, so have a longer life-cycle.



The large easy-to-read LCD screen on Titon batteries can show battery status in two ways. When the battery is not connected to a device it will show the charge capacity as a percentage. When the battery is connected to a camera or a light etc it will show the battery run-time in hours and minutes.



Yes, many cameras can read the battery charge levels on Gold Mount and V-Mount batteries provided through the mount. All Titon batteries supply that information.



Yes you can. All Titon batteries are available in both V-Mount and Gold Mount versions, so everyone can enjoy Anton/Bauer power.



Titon batteries can be charged on all current Anton/Bauer chargers as well as earlier model chargers. Older chargers should be updated the latest firmware version. Contact Anton/Bauer customer service to check full compatibility. They are also compatible with many V-Mount or Gold Mount chargers produced by other manufacturers. Check with your charger manufacturer for details.



Titon batteries contain unique technology that increases run-time and lengthens life cycle, together with Anton/Bauer’s balanced, high-quality cells that deliver a long performance life. Titon batteries have a warrantied life of 1000 cycles.



Amperage (abbreviated as A) is a measure of current. To choose the right battery for your system, simply add up the current draw of the individual components being powered to determine the system draw. Titon batteries supply up to 10A of current. Most mid production rigs, and portable setups are well below 10A. Larger, energy hungry cine cameras that might include motorized lenses, monitor, etc sometimes go over the 10A limit and will need a 12A battery. The right power solution is based on the needs of the system being powered.



Yes. According to IATA regulations, Lithium-ion batteries may not travel in the hold of a passenger aircraft, however, Titon 90 and 150 Wh batteries may be taken on-board in your carry-on baggage subject to the prior approval of your airline. Check with your airline's rules for specific limitations. You can check the latest IATA regulations here. Remember, spare batteries should be individually protected to prevent the possibility of short circuits.



Titon’s Smart USB port supplies a regulated 5 volts and maximum 2 Amps current. This means mobile devices such as smart phones and tablets can safely charge from a Titon battery as quick and reliably as AC power.



It’s the same thing. P-TAP is short for PowerTap® a power outlet port invented by Anton/Bauer as a way to power external accessories in addition to the camera. As PowerTap is a registered trademark of Anton/Bauer, other manufacturers sometimes call it a D-TAP port.



Anton/Bauer products are backed by the most extensive warranty coverage and service support in the industry. Titon batteries are covered by a two year conditional warranty from the date of purchase. Please register your purchase for full coverage.



Titon batteries are available from Anton/Bauer’s global authorized dealer network. Use our How to buy feature to find your nearest Titon reseller.



Gold Mount and V-Mount are the two most popular battery mounting systems in the industry. The Gold Mount was developed 50 years ago by Anton/Bauer - working with several leading camera manufacturers – to create an ultra-secure method to lock batteries to cameras for a reliable connection for power and communications. It uses a three-pin sideways lock and slide method to secure the battery. V-Mount was developed by Sony for their cameras, batteries slide top-down into a V shape to lock into place. Which battery mount to use comes down to personal preference. Titon batteries are available in both Gold Mount and V-Mount.



Yes you can. Most LED lighting fixtures have mounting brackets for V-Mount or Gold Mount batteries as standard or available as an optional accessory. Powering lights with batteries gives you ultimate freedom of movement as you are not tethered to a wall outlet and also removes potential trip hazards.
